B.W. Macknair & Son 3055 US HWY 522N Lewistown, pa 17044

717-543-5136      norman@macknair.com

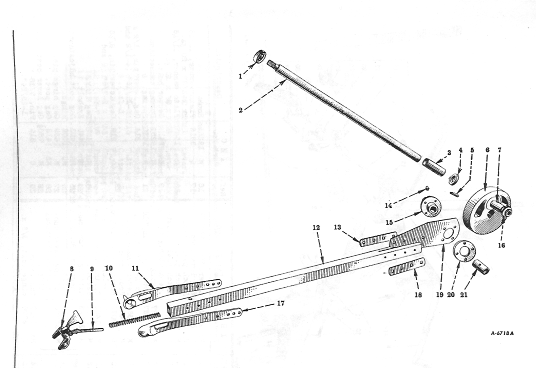

#1  Bearing    $6.50 #2  Shaft    $30.00 #3  M32876 Bushing   $10.00
#4  450045 Oil Seal    $10.00 #7   Wrist Pin  $14.00 #8,9 M1579 Fork      $33.00
#10 M1574 Spring     $2.00 #11,17 Strap   $21.50 each #12  Pitman   $10.00
#13 Plate       $1.25 #21  M2078 Bushing   $7.50

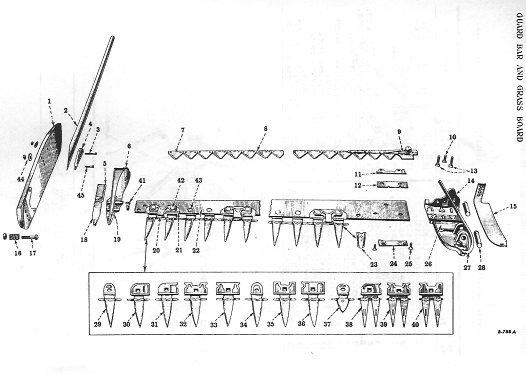

#1  Grassboard   $75.00 #8  Knife    $85.00 #10  Bolts   $3.85 #11   Cap    $18.00
#12 M22863 Plate   $7.00 #15  M465 Sole   $14.00 #18  Sole    $7.50 #19 Out Ledger $4.50
#20  Clip            $6.50 #21 M468 Plate $2.00 #23 Ledger $1.45 #24 Cap      $7.00
#26 M1263 Ledger     $10.00 #27 Fender Rod $7.00 #28 Pin      $3.85 #29  Guard  $8.50

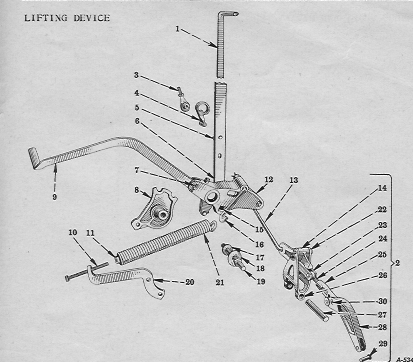

#3  Pawl Pivot   $18.50 #4  Pawl    $12.00 #12  Lift Casting $45.00
#14 Gag Lever   $18.00 #16 Hook $7.00 #21  Used Spring $30.00
#26  Hinge        $22.00 #27  Pin    $4.50

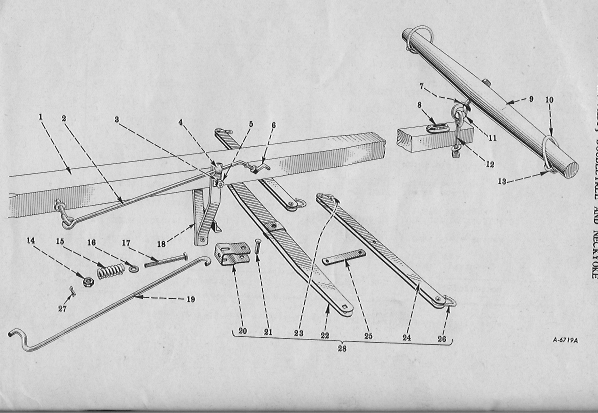

#2  Stay Rod     $10.50 #18  Draft Bracket Comp.  $45.00 #20  Clevis  $4.00
#19  Draft Rod   $7.00

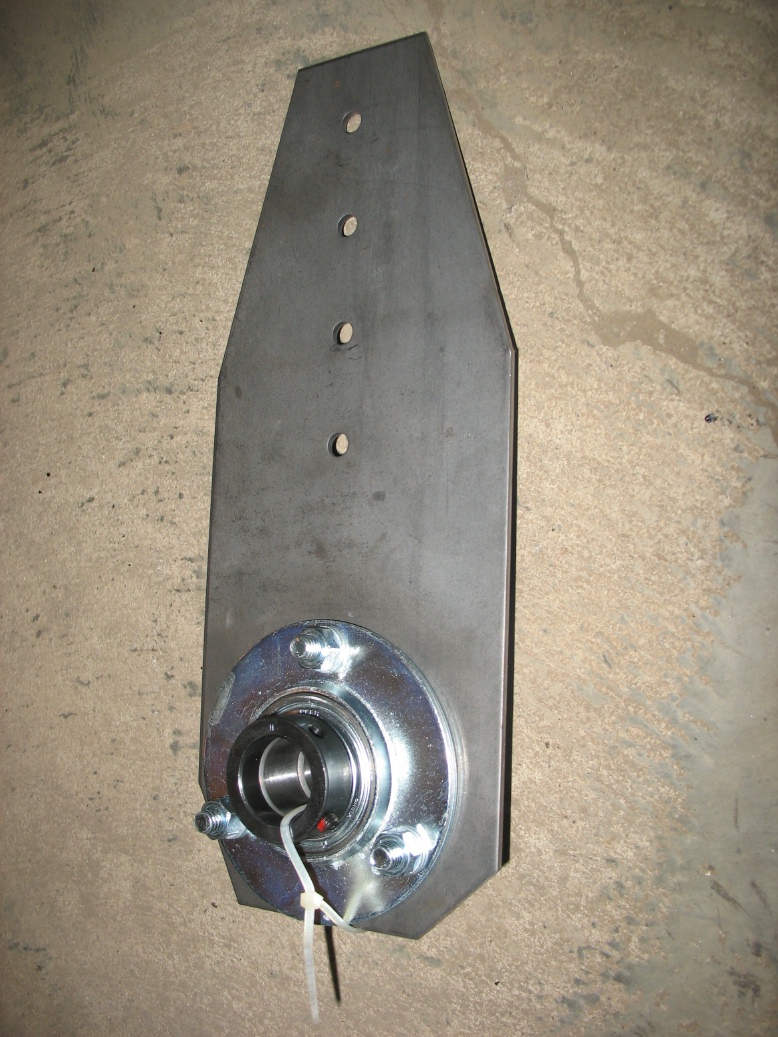

I make this plate to replace the the original plate on IH and JD mowers.  It works well, is quieter, does not need greased, and the bearings can be replaced from your local supplier. $48.00

I cannot list list everything I have for mowers as they are just too numerous to list.  I also have most brands parted out.  Call or e-mail with your request.
